The Ultimate Guide to HPLC Method Development: A Comprehensive 360-Degree Handbook for Chromatographers

Introduction: Why HPLC Method Development is the Backbone of Analytical Quality

In the pharmaceutical, biopharmaceutical, and chemical manufacturing industries, an analytical method is much more than a routine laboratory recipe. It is a highly optimized, legally binding, and scientifically validated process that guarantees a product's identity, purity, potency, and safety.

Whether you are bringing a novel life-saving drug to market, testing for trace-level genotoxic impurities, or managing high-throughput quality control, your analytical method is your guiding light.

The Real-World Consequences of Poor Method Development

Rushing through the initial phases of method development or relying purely on a trial-and-error approach invariably leads to catastrophic, costly failures later in a product’s lifecycle:

• Regulatory Delays and Rejections: Regulatory bodies like the US FDA, EMA, and CDSCO will aggressively reject submissions (IND, NDA, ANDA) if the analytical validation data lacks scientific integrity or robustness.
• Frequent Out-of-Specification (OOS) Investigations: Poorly designed methods suffer from baseline drift, shifting retention times, and erratic peak integration, triggering expensive and time-consuming laboratory investigations.
• Failed Tech Transfers: A fragile method that works perfectly on Monday in a development lab might fail reproducibility criteria on Wednesday when transferred to a commercial Quality Control (QC) plant.

To eliminate these hurdles, modern analytical laboratories are shifting away from traditional empirical approaches and embracing Analytical Quality by Design (AQbD).

1. The Analytical Quality by Design (AQbD) Framework

The modern lifecycle approach treats HPLC method development as a systematic, risk-based process. Rather than randomly changing variables, AQbD uses a structured workflow to guarantee method ruggedness.

What is the Analytical Target Profile (ATP)?

The Analytical Target Profile (ATP) is the foundational bedrock of your method. It is a formal statement that defines the quality requirements of the analytical measurement. To establish a clear ATP, you must answer these critical questions:

1. What is the intended application? (e.g., Assay, Related Substances/Impurity profiling, Dissolution, Content Uniformity, or Bioanalytical trace-level analysis).
2. What is the target sample matrix? (e.g., Active Pharmaceutical Ingredient (API), tablet dosage form, injectable liquid, or complex biological serum).
3. What are the required performance criteria? (e.g., Target precision, accuracy, Limit of Detection [LOD], and Limit of Quantitation [LOQ]).

2. Phase 1: Pre-Development, Scoping, and Molecule Characterization

Before you turn on your HPLC pump, prepare mobile phases, or select a column, you must conduct a thorough literature review and characterize the physical and chemical properties of your analyte.

Core Physicochemical Parameters to Evaluate:

A. Acid Dissociation Constant (pKa)

The pKa value tells you the exact pH at which a molecule exists in a 50:50 equilibrium between its ionized (charged) and unionized (neutral) states.

• Why it matters: Charged molecules are highly polar and elute very early in Reversed-Phase chromatography, often with poor peak shapes. Neutral molecules are less polar and retain better on hydrophobic columns.
• The Golden Rule: To ensure a stable, reproducible method, your mobile phase pH must be maintained at least ± 1.5 to 2.0 units away from the analyte's pKa. This locks the molecule into a 100% uniform state (either completely ionized or completely unionized), preventing peak splitting and retention time drifting.

B. Partition Coefficient (Log P and Log D)

• Log P measures a molecule's hydrophobicity in its neutral form.
• Log D measures hydrophobicity at a specific pH, taking ionization into account.
• Chromatographic Guidance: A high Log P (>2) indicates a highly hydrophobic compound, making Reversed-Phase HPLC (RP-HPLC) the perfect choice. A low or negative Log P indicates an extremely polar molecule, meaning the compound will not retain on a traditional C18 column and will instead require Hydrophilic Interaction Liquid Chromatography (HILIC).

C. UV Absorbance Spectrum (λ_max)

Run a preliminary UV-Vis spectrophotometer scan of your analyte dissolved in water, methanol, and acetonitrile. Identify the absorption maxima (λ_max}).

• Strategic Tip: For ultra-trace impurity profiling, select the exact λ_max to maximize sensitivity. For high-concentration drug assays, you may choose a compromise wavelength or a less intense absorption band to avoid saturating the detector.

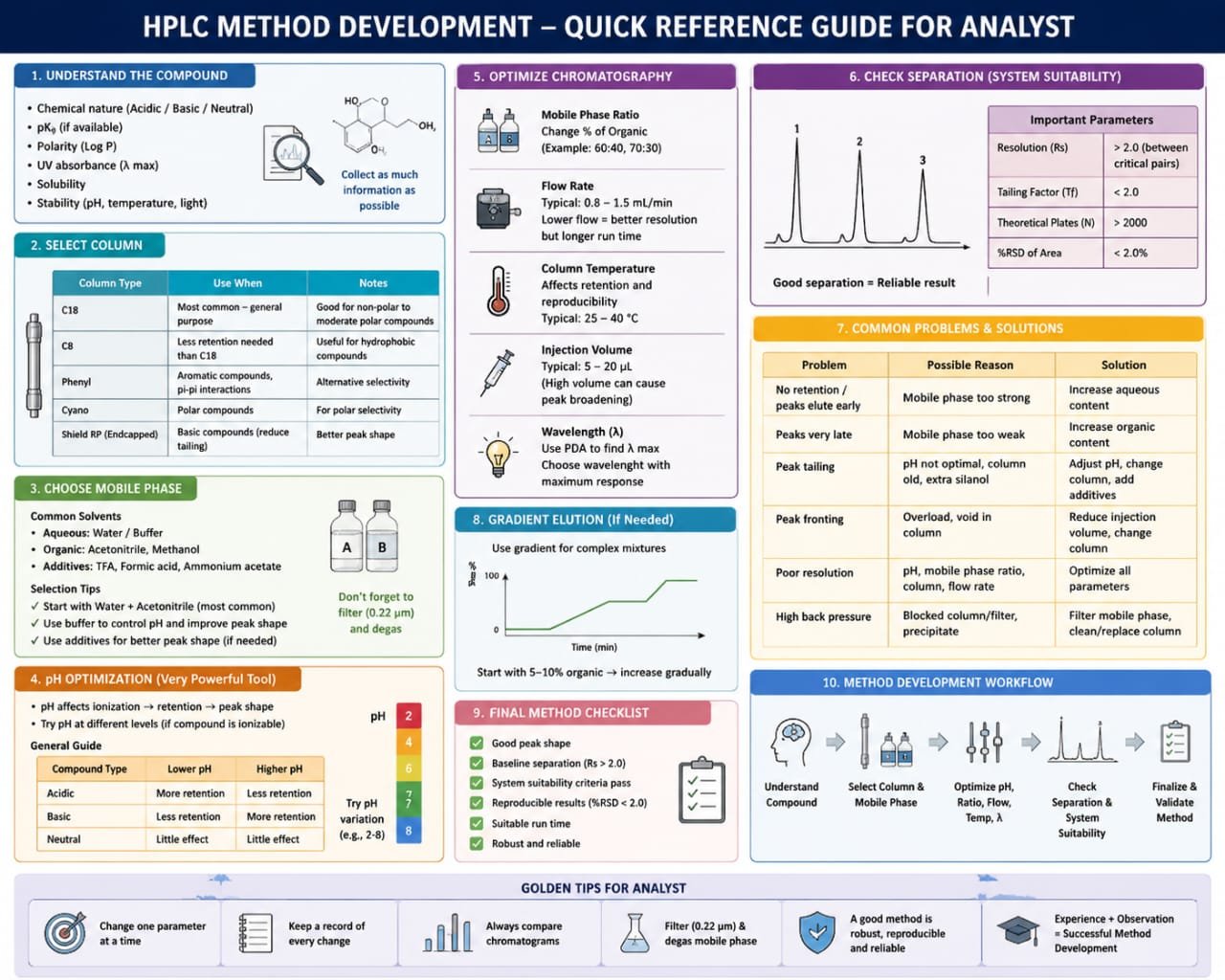

Figure 2: The Bench Analyst’s HPLC Checklist — A comprehensive, one-page guide for stationary phase decoupling, pH boundaries, gradient elution setup, and real-time laboratory troubleshooting.

3. Phase 2: Selecting the Stationary Phase (Column Chemistry)

The column is the undisputed heart of any HPLC system. Selecting the correct stationary phase chemistry, particle size, and pore geometry will solve 80% of your potential chromatographic issues before they even begin.

Traditional HPLC vs. Modern UHPLC Column Geometry

• Traditional HPLC Columns: Typically utilize 5 µm or 3 µm fully porous silica particles packed inside 4.6 x 150mm or 250mm hardware. They operate at lower backpressures (<400 bar) but require longer run times.
• Modern UHPLC Columns: Utilize sub-2 µm particles (1.7 µm - 1.9 µm). They provide massive peak capacity, ultra-sharp peaks, and incredibly fast run times, but require advanced systems capable of handling high backpressures up to 1000+ bar.

Decoupling Column Chemistries

4. Phase 3: Mobile Phase Chemistry and Buffer Selection

The mobile phase acts as the engine driving your analyte through the column. It is composed of an aqueous buffer and an organic modifier.

1. Organic Modifiers: Acetonitrile vs. Methanol

• Acetonitrile (ACN): The premier choice for most chemists. It features low viscosity (resulting in lower system backpressure), high eluotropic strength, and a low UV cutoff (~190 nm), which provides a stable baseline even at low wavelengths.
• Methanol (MeOH): A cost-effective, environmentally friendlier alternative. However, MeOH generates a much higher backpressure when mixed with water and has a higher UV cutoff (~205 nm), which can cause baseline lifting.

2. The Absolute Requirement of Buffers

Buffers resist changes in pH when samples are injected or when gradient composition shifts.

• Phosphate Buffers (KH₂PO₄ / NaH₂PO₄): Excellent buffering capacity across a wide pH range (2.0 - 3.0 and 6.0 - 8.0). However, they are entirely non-volatile.
• ⚠️ The Mass Spectrometry (LC-MS) Restriction: If there is a possibility your method will ever be transferred to an LC-MS system, never use non-volatile phosphate or borate buffers. They will crystallize instantly inside the high-vacuum ion source. Instead, select volatile buffers such as Ammonium Formate, Ammonium Acetate, Formic Acid, or Trifluoroacetic Acid (TFA).

5. Phase 4: Sample Preparation and Diluent Optimization

One of the most frequently overlooked aspects of HPLC method development is the choice of sample diluent. A poor diluent can destroy an otherwise flawless separation.

Best Practice: Always dissolve your sample directly in the starting mobile phase composition, or in a solvent that contains a higher percentage of water than the starting mobile phase. This forces the analyte to focus into a tight, narrow band right at the head of the column, yielding maximum resolution and efficiency.

6. Phase 5: Designing the Elution Strategy (Isocratic vs. Gradient)

Choosing how your mobile phase components mix over time depends entirely on the complexity of your sample matrix.

Isocratic Elution (Constant Composition)

In an isocratic method, the ratio of the aqueous buffer to the organic modifier remains completely constant throughout the entire run.

• Advantages: Simple, highly reproducible across older HPLC systems, and requires absolutely zero post-run equilibration time between injections.
• Disadvantages: Suffers from the "General Elution Problem." Polar compounds will elute very early and bunch together, while non-polar compounds will elute incredibly late as broad, flat peaks.

Gradient Elution (Dynamic Composition)

In a gradient method, the composition of the mobile phase changes systematically over time.

• Advantages: Capable of resolving incredibly complex mixtures containing dozens of compounds with completely different polarities within a single run. Peaks remain sharp throughout the entire chromatogram.
• Disadvantages: Requires a dedicated post-run column re-equilibration step. You must pump your initial mobile phase composition through the column for at least 5 to 10 Column Volumes to return the stationary phase to its original equilibrium state before starting the next injection.

7. Phase 6: System Optimization and Fine-Tuning

Once you have successfully achieved an initial separation where all your target analytes resolve from the matrix, you must fine-tune the instrument parameters to optimize run time, peak shape, and backpressure.

Critical Tuning Knobs:

1. Column Temperature

Never operate an HPLC method at uncontrolled room temperature. Setting your column oven to a controlled temperature between 35°C and 50°C decreases mobile phase viscosity. This lowers system backpressure, increases mass transfer rates, speeds up your run, and sharpens your peaks.

2. Flow Rate Optimization

For a standard 4.6mm internal diameter column packed with 5 µm particles, a flow rate of 1.0 mL/min to 1.5 mL/min is typically ideal. Do not exceed the maximum pressure rating of your pump.

3. Injection Volume Adjustments

Optimize your injection volume to stay well within the mass loading capacity of your column. For standard analytical columns, keep injection volumes between 5 µL and 20 µL.

8. Phase 7: Establishing System Suitability Tests (SST)

A method cannot be used for routine analysis or regulatory reporting until you define strict System Suitability Tests (SST). These parameters must be verified at the beginning of every single injection sequence to prove that the entire system is performing within acceptable limits.

Figure 3: Chromatographic Resolution Mapping — Visualizing baseline separation ($Rs \ge 1.5$), peak symmetry, and injection precision criteria required for routine regulatory compliance.

9. Phase 8: Comprehensive Method Validation (ICH Q2(R2))

Method validation provides documented evidence that an analytical procedure is completely fit for its intended purpose. Globally, this process is strictly governed by the International Council for Harmonisation (ICH) Q2(R2) Guidelines.

The 5 Core Pillars of Validation:

1. Specificity / Selectivity

The method must be able to unequivocally measure the target analyte in the presence of all potential interferences, such as excipients, degradation products, blank solvents, and synthesis impurities.

2. Linearity and Range

The method’s response (peak area) must be directly proportional to the concentration of the analyte within a defined range. Plot a linear regression curve. The correlation coefficient (R²) should ideally be ≥ 0.999.

3. Accuracy (Recovery Study)

Accuracy determines the closeness of agreement between the value found by the method and the true accepted reference value. For a standard API assay, the acceptable recovery range is typically a strict 98.0% to 102.0%.

4. Precision

Precision evaluates the degree of scatter or reproducibility across a series of multiple measurements. For assays, the final calculated %RSD must remain ≤ 2.0%.

5. Robustness

Robustness measures the method's capacity to remain completely unaffected by small, deliberate variations in its operational parameters (e.g., small tweaks in flow rate, temperature, or pH).

10. Troubleshooting Common Chromatographic Anomalies

Even the most meticulously developed methods can present unexpected hurdles. Use this quick reference diagnostic guide to troubleshoot issues on your system:

A. Problem: Peak Tailing (T > 2.0)

• Root Cause: Basic amine groups are interacting ionically with exposed acidic silanols on the silica core.
• Fix: Switch to a modern, fully end-capped column; optimize the mobile phase pH to keep the compound neutral.

B. Problem: Split Peaks or Double Peaking

• Root Cause: The sample injection diluent is chromatographically stronger than the starting mobile phase composition.
• Fix: Dilute the sample with water or starting buffer until the diluent matches the starting mobile phase.

C. Problem: Retention Time Shifting (Drifting)

• Root Cause: The column is exposed to open air drafts or inadequate post-run equilibration time during gradient runs.
• Fix: Always use a thermostated column oven compartment and increase the post-run equilibration time.

Conclusion & Next Steps: Turning Method Development into Success

Developing a high-performance liquid chromatography method is an elegant blend of deep chemical insight, logical experimental design, and mechanical troubleshooting. By abandoning empirical trial-and-error in favor of a structured, AQbD-aligned development strategy, you ensure that your methods are compliant, reliable, and easily validatable under strict regulatory criteria.
